Product Description
Features
ü Hot-pluggable SFP footprint
ü Duplex LC fiber connector
ü Transmission distance up to 300m on 50/125μm or 62.5/125μm MMF
ü Built-in DDMI functions
ü Comply with SFP MSA .
ü Single +3.3V power supply
ü RoHS6 compliant (lead free)
ü Operating case temperature:
Commercial : 0 to +70°C
Industrial : -40 to +85°C
ü Comply with Ethernet Switches from a lot of widely used brands .
Applications
ü 10GBASE Ethernet
ü STM-64 / SONET OC-192 SDH STM-64
ü Switch to Switch interface
ü Router/Server interface
ü Other optical transmission systems
Optical Characteristics
Optical transmitter Characteristics |
Parameter | Symbol | Min | Typical | Max | Unit | Notes |
Launched Power (avg.) | POUT | -7.3 |
| -1 | dBm |
|
Optical Power OMA | POMA |
| -1.5 |
| dBm | 1 |
Operating Wavelength Range | λC | 840 | 850 | 860 | nm |
|
Spectral Width (RMS) | ?λ |
|
| 0.45 | nm |
|
Extinction Ratio | ER | 3 |
|
| dB | 2 |
Transmitter and Dispersion Penalty | TDP |
|
| 3.2 | dB |
|
Optical Output Power after TX Disable | PDIS |
|
| -30 | dBm |
|
Relative Intensity Noise | RIN |
|
| -128 | dB/Hz |
|
Optical Return Loss Tolerance | ORL |
|
| 12 | dB |
|
Tx Jitter | Txj | Per IEEE 802.3ae requirements |
|
|
Optical Receiver Characteristics |
Parameter | Symbol | Min | Typical | Max | Unit | Notes |
Wavelength Range | λC | 840 | 850 | 860 | nm |
|
Receiver Sensitivity (OMA) | RSENS1 |
|
| -11.1 | dBm | 3 |
Stressed Receiver Sensitivity (OMA) | RSENS2 |
|
| -7.5 | dBm | 3 |
Optical Power Input Overload | Pin-max | +0.5 |
|
| dBm |
|
LOS De-Assert | LOSD |
|
| -13 | dBm | 3 |
LOS Assert | LOSA | -30 |
|
| dBm | 3 |
LOS Hysteresis |
| 0.5 |
|
| dB | 4 |
Receiver Reflectance | Rr |
|
| -12 | dB |
|
Notes:
1. Per Tradeoff Table 52.8, IEEE 802.3ae 2005
2. For the measurements, the device was driven with 231-1 PRBS pattern.
3. Measured with a PRBS 231-1 test pattern, @10.3125Gbps,, BER<10-12
4. The LOS Hysteresis minimizes ‘chatter’ on the output line. In principle, Hysteresis alone does not guarantee chatter-free operation.
Pin definition
The SFP+ modules are hot-pluggable. Hot pluggable refers to plugging in or unplugging a module while the host board is powered. The SFP+ host connector is a 0.8 mm pitch 20 position right angle improved connector specified by SFF-8431, or stacked connector with equivalent electrical performance. SFP+ module contacts mates with the host in the order of ground, power, followed by signal as illustrated by Figure 1 and the contact sequence order listed in Table 1.

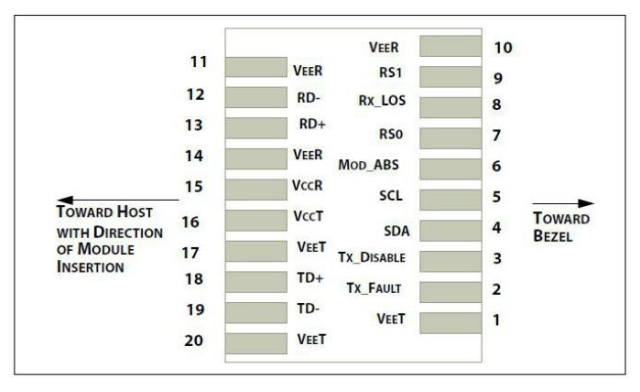

Figure 1 SFP+ Pad Assignment Top View
Pin No | Symbol | Name/Description | Power Seq. | Note |
1 | VeeT | Transmitter Ground | 1st | 1 |
2 | TX_Fault | Transmitter Fault | 3rd | 2 |
3 | TX_Disable | Transmitter Disable | 3rd | 3 |
4 | SDA | 2-Wire Serial Interface Data Line | 3rd | 4 |
5 | SCL | 2-Wire Serial Interface Data Line | 3rd | 4 |
6 | Mod_ABS | Module Absent, Connect to VeeT or VeeR in Module | 3rd | 5 |
7 | RS0 | No connection required | 3rd | 6 |
8 | RX_LOS | Receiver Loss of Signal indication | 3rd | 7 |
9 | RS1 | No connection required | 3rd | 8 |
10 | VeeR | Receiver Ground | 1st | 1 |
11 | VeeR | Receiver Ground | 1st | 1 |
12 | RD- | Receiver Inverted DATA out. AC Coupled. CML-O | 3rd | 9 |
13 | RD+ | Receiver Non-inverted DATA out. AC Coupled. CML-O | 3rd | 9 |
14 | VeeR | Receiver Ground | 1st | 1 |
15 | VccR | Receiver Power Supply | 2nd | 10 |
16 | VccT | Transmitter Power Supply | 2nd | 10 |
17 | VeeT | Transmitter Ground | 1st | 1 |
18 | TD+ | Transmitter Non-Inverted DATA in. AC Coupled. CML-I | 3rd | 11 |
19 | TD- | Transmitter Inverted DATA in. AC Coupled. CML-I | 3rd | 11 |
20 | VeeT | Transmitter Ground | 1st | 1 |
Power Seq.: Pin engagement sequence during hot plugging.
Notes:
1. The module signal ground contacts.
2. This pin is an open drain/collector and should be pulled up to Vcc-host in the host with a 4.7k~10k Ohm resistor.
3. This pin should be pulled up to VccT with a 4.7k~10k Ohm resistor in modules.
4. SDA&SCL (IIC) are needed pull up 4.7k~10k Ohm resistors on host board.
5. Mod_ABS is connected to VeeT or VeeR in the SFP+ module.
6. Rate Select 0, no connection required.
7. Module RX_Los of signal indication need pull up 4.7k~10k Ohm resistor on host board.
8. Rate Select 1, no connection required.
9. RD -/+: These are the differential receiver outputs. They are CML AC-coupled with 100 Ohm terminal resistor matching internal.
10. VccR and VccT are the receiver and transmitter power supplies.
11. TD-/+: These are the differential transmitter inputs. They are CML AC-coupled with 100 Ohm terminal resistor matching internal.
Ordering information
PART NO. | Specifications |
Pack | Rate | Tx | Po | Sen | Temp | Reach | DDM |
(Gbps) | (nm) | (dBm) | (dBm) | (℃) | (m) |
HD-SFP+/10G-SR | SFP+ | 10.3125 | 850 | -7.3~-1 | ＜-11.1 | 0~70 | 300 | Y |
*Note：
1. Measured with a PRBS 231-1 test pattern, @10.3125Gb/s.
2. More detail product selection and cable lengths, please contact Handar.
